2684-7600-01-00

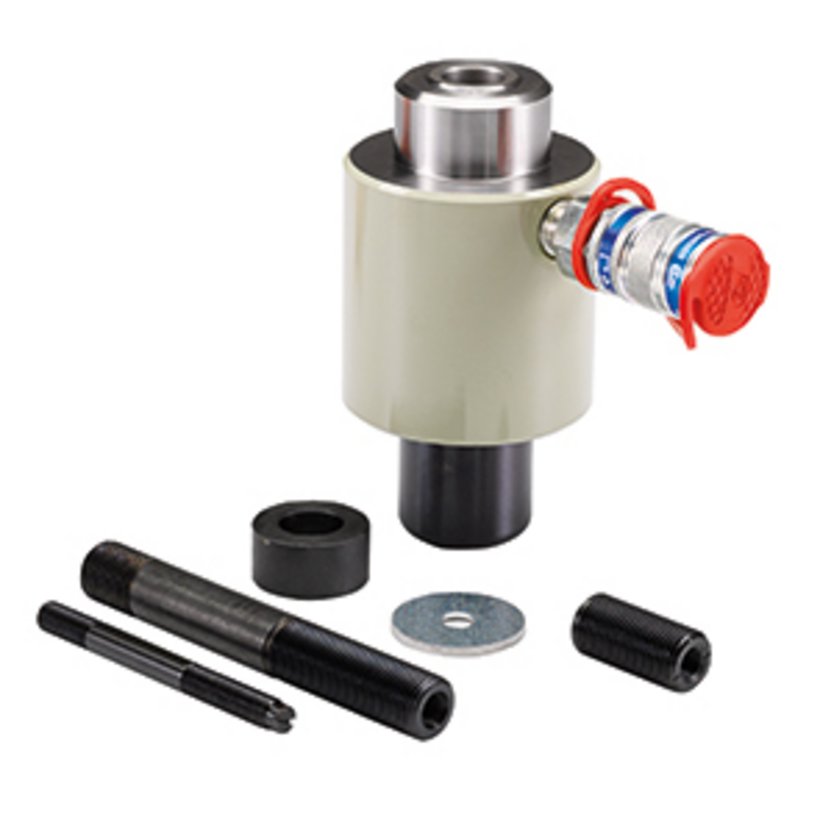

Hydraulikzylinder 19
- Ausgelegt für schwer zugängliche Stellen
- Max. Lochung: ø 120 mm
Produktbeschreibung
Zur Betätigung der Locher aus der Rubrik "Mobile Geräte" mit häwa Elektro- oder Luft-Hydraulikpumpe. Komplett anschlussfertig mit Schnellkupplung, Scheibe, Distanzhülse und 2 Betätigungsschrauben ø 9,5 mm und ø 19 mm.
Technische Daten
-
Artikelnummer: 2684-7600-01-00
-
Abmessungen: Stanzzylinder: ø 78 x 148 mm
-
Einsetzbar für: Rundlocher bis ø 120 mm / Quadratlocher 92 mm / Rechtecklocher bis 138 mm Diagonale
-
max. Blechstärke: Stahl 3 mm / Edelstahl 2 mm / Aluminium 4 mm
-
Produktfamilie: für Mobile Geräte
-
Schraubenaufnahme: Gewinde 19 mm
-
Gewicht: 2.7 kg
-
Zylinderhub: 28 mm
Hinweis
- Wird am Schlauch der Stanzpumpe die Schraubkupplung durch einen Stecknippel ersetzt, kann dieser Zylinder auch mit Hand- oder Fußstanzpumpen betrieben werden.
- 1 Hydraulikzylinder
- 2 Betätigungsschrauben (Schraube mit 2 x Gewinde ø 9,5 mm und 2 x Gewinde 19 mm)
- 1 Scheibe
- 1 Distanzhülse

2623-0828-30-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 28,3 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
21

2623-0830-50-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 30,5 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0832-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 32 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0832-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 32,2 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0834-10-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 34,1 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0835-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 35 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0837-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 37 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
29

2623-0838-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 38 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0840-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 40,2 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0841-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 41,2 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0843-30-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 43,3 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0845-50-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 45,5 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0847-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 47 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
36

2623-0850-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 50,2 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0854-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 54 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
42

2623-0856-50-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 56,5 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0860-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 60 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
48

2623-0863-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 63,2 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0864-40-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 64,4 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0866-60-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 66,6 mm
Max. Blechstärke
Stahl 3 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm

2623-0870-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 70 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0875-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 75,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0876-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 76,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0880-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 80 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0882-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 82 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0888-50-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 88,5 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0892-00-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 92 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
Ø 19 mm

2623-0810-20-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 102 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
Ø 19 mm

2623-0811-43-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 114,3 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
Ø 19 mm

2623-0812-01-00
Rundlocher mit Gewinde Ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 120 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
Ø 19 mm

2682-0815-20-25
Rundlocher Plus mit Gewinde ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 15,2 mm
Max. Blechstärke
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
9

2682-0816-20-25
Rundlocher Plus mit Gewinde ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 16,2 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2682-0818-60-25
Rundlocher Plus mit Gewinde ø 11,1 mm
Produktfamilie
für Mobile Geräte
Größe
ø 18,6 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 11,1 mm
PG
PG
11

2682-0820-20-25
Rundlocher Plus mit Gewinde ø 11,1 mm
Produktfamilie
für Mobile Geräte
Größe
ø 20,2 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 11,1 mm
PG
PG
13.5

2682-0820-40-25
Rundlocher Plus mit Gewinde ø 11,1 mm
Produktfamilie
für Mobile Geräte
Größe
ø 20,4 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 11,1 mm
PG
PG
13.5

2682-0822-50-25
Rundlocher Plus mit Gewinde ø 11,1 mm
Produktfamilie
für Mobile Geräte
Größe
ø 22,5 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 11,1 mm
PG
PG
16

2682-0825-20-25
Rundlocher Plus mit Gewinde ø 11,1 mm
Produktfamilie
für Mobile Geräte
Größe
ø 25,2 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
ø 11,1 mm

2682-0828-50-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 28,5 mm
Max. Blechstärke
Edelstahl 2 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
21

2682-0830-50-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 30,5 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2682-0832-20-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 32,2 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2682-0837-00-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 37 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
29

2682-0840-20-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 40,2 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2682-0847-00-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 47 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
36

2682-0850-20-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 50,2 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2682-0854-00-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 54 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
42

2682-0860-00-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 60 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm
PG
PG
48

2682-0863-20-25
Rundlocher Plus mit Gewinde ø 19 mm
Produktfamilie
für Mobile Geräte
Größe
ø 63,2 mm
Max. Blechstärke
Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0812-20-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 12,2 mm
Max. Blechstärke
Stahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0812-70-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 12,7 mm
Max. Blechstärke
Stahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
7

2623-0814-00-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 14 mm
Max. Blechstärke
Stahl 1,5 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
ø 9,5 mm

2623-0815-20-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 15,2 mm
Max. Blechstärke
Stahl 1,5 mm
Edelstahl 1 mm
Edelstahl 1 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
9

2623-0816-20-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 16,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0817-30-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 17,3 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0818-60-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 18,6 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
11

2623-0819-00-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
Ø 19 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0820-20-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 20,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0820-40-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 20,4 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
13.5

2623-0821-30-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 21,3 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0822-50-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 22,5 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
16

2623-0823-80-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 23,8 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0824-50-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 24,5 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0825-20-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 25,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0827-00-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 27 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 2 mm
Edelstahl 2 mm
Betätigungsgewinde
ø 9,5 mm

2623-0828-50-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 28,5 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm
PG
PG
21

2623-0830-51-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 30,5 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0832-21-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 32,2 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0833-30-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 33,3 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0835-01-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 35 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0838-11-00
Rundlocher mit Gewinde Ø 9,5 mm
Produktfamilie
für Mobile Geräte
Größe
ø 38,1 mm
Max. Blechstärke
Stahl 2 mm
Edelstahl 1,5 mm
Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2682-7816-50-26
Rundlochersatz Plus mit metrischen Lochern von M16 bis M50
Produktfamilie
für Mobile Geräte
Größe
metrische Rundlocher in mm: ø 16,2; ø 20,2; ø 25,2; ø 32,2; ø 40,2; ø 50,2
Max. Blechstärke
Edelstahl 2,5 mm, abhängig von Lochergröße
Betätigungsgewinde
ø 9,5 mm / ø 11,1 mm und ø 19 mm

2623-7812-50-00
Rundlochersatz mit metrischen Lochern von M12 bis M50
Produktfamilie
für Mobile Geräte
Größe
metrisch: metrische Rundlocher in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm / ø 19 mm
Variante
ohne Betätigungsschrauben

2683-7812-50-20
Rundlochersatz mit metrischen Lochern von M12 bis M50
Produktfamilie
für Mobile Geräte
Größe
metrisch: metrische Rundlocher in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm / ø 19 mm
Variante
mit Betätigungsschrauben

2623-7812-30-00
Rundlochersatz mit Lochern von PG7 bis PG21 + ø 30,5 mm
Produktfamilie
für Mobile Geräte
Größe
PG-Rundlocher in PG: 7;9;11;13;16;21 und ø 30,5 mm
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm
Variante
ohne Betätigungsschraube

2683-7812-30-20
Rundlochersatz mit Lochern von PG7 bis PG21 + ø 30,5 mm
Produktfamilie
für Mobile Geräte
Größe
PG-Rundlocher in PG: 7;9;11;13;16;21 und ø 30,5 mm
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm
Variante
mit Betätigungsschraube

2623-7812-60-00
Rundlochersatz mit Lochern von PG7 bis PG48 + ø 30,5 mm
Produktfamilie
für Mobile Geräte
Größe
PG-Rundlocher in PG: 7;9;11;13;16;21;29;36;42;48 und ø 30,5 mm
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm / ø 19 mm
Variante
ohne Betätigungsschrauben

2683-7812-60-30
Rundlochersatz mit Lochern von PG7 bis PG48 + ø 30,5 mm
Produktfamilie
für Mobile Geräte
Größe
PG-Rundlocher in PG: 7;9;11;13;16;21;29;36;42;48 und ø 30,5 mm
Max. Blechstärke
Stahl 3 mm, abhängig von der Lochergröße
Betätigungsgewinde
ø 9,5 mm / ø 19 mm
Variante
mit Betätigungsschrauben

2623-0922-20-00
Quadratlocher 22,2
Produktfamilie
für Mobile Geräte
Größe
22,2 x 22,2 mm
Max. Blechstärke
Stahl 2 mm + Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2623-0925-40-00
Quadratlocher 25,4
Produktfamilie
für Mobile Geräte
Größe
25,4 x 25,4 mm
Max. Blechstärke
Stahl 2 mm + Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2683-0945-00-02
Quadratlocher 45
Produktfamilie
für Mobile Geräte
Größe
45 x 45 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0946-00-02
Quadratlocher 46
Produktfamilie
für Mobile Geräte
Größe
46 x 46 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0968-00-02
Quadratlocher 68
Produktfamilie
für Mobile Geräte
Größe
68 x 68 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0992-00-02
Quadratlocher 92
Produktfamilie
für Mobile Geräte
Größe
92 x 92 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0922-30-00
Rechtecklocher 22 x 30
Produktfamilie
für Mobile Geräte
Größe
22 x 30 mm
Max. Blechstärke
Stahl 2 mm / Edelstahl 1,5 mm / Aluminium 3 mm
Betätigungsgewinde
ø 9,5 mm

2683-0922-42-11
Rechtecklocher 22 x 42
Produktfamilie
für Mobile Geräte
Größe
22 x 42 mm
Max. Blechstärke
Stahl 2 mm / Edelstahl 1,5 mm / Aluminium 3 mm
Betätigungsgewinde
ø 9,5 mm

2683-0925-50-00
Rechtecklocher 25 x 50
Produktfamilie
für Mobile Geräte
Größe
25 x 50 mm
Max. Blechstärke
Stahl 2 mm + Edelstahl 1,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0946-92-02
Rechtecklocher 46 x 92
Produktfamilie
für Mobile Geräte
Größe
46 x 92 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0936-52-02
Rechtecklocher für schwere Steckverbinder
Produktfamilie
für Mobile Geräte
Größe
36 x 52 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0936-65-02
Rechtecklocher für schwere Steckverbinder
Produktfamilie
für Mobile Geräte
Größe
36 x 65 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0936-85-52
Rechtecklocher für schwere Steckverbinder
Produktfamilie
für Mobile Geräte
Größe
36 x 85,5 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2683-0936-11-22
Rechtecklocher für schwere Steckverbinder
Produktfamilie
für Mobile Geräte
Größe
36 x 112 mm
Max. Blechstärke
Stahl 3 mm + Edelstahl 2,5 mm
Betätigungsgewinde
Ø 19 mm

2623-0922-52-01
Rundlocher mit 2 Nasen
Produktfamilie
für Mobile Geräte
Größe
ø 22,5 mm
Max. Blechstärke
Stahl 2 mm, Edelstahl 1,5 mm
Betätigungsgewinde
ø 9,5 mm

2683-0000-00-37
Formlocher für MinD / D-Sub / IEEE
Produktfamilie
für Mobile Geräte
Polzahl
37
Größe
11,3 x 58,4 mm
Max. Blechstärke
Stahl 1,75 mm / Edelstahl 1 mm / Aluminium 2 mm
Betätigungsgewinde
ø 9,5 mm

2683-0000-00-09
Formlocher für MinD / D-Sub / IEEE
Produktfamilie
für Mobile Geräte
Polzahl
9
Größe
11,3 x 19,8 mm
Max. Blechstärke
Stahl 1,75 mm / Edelstahl 1 mm / Aluminium 2 mm
Betätigungsgewinde
ø 9,5 mm

2683-0000-00-50
Formlocher für MinD / D-Sub / IEEE
Produktfamilie
für Mobile Geräte
Polzahl
50
Größe
11,3 x 58,4 mm
Max. Blechstärke
Stahl 1,75 mm / Edelstahl 1 mm / Aluminium 2 mm
Betätigungsgewinde
ø 9,5 mm

2683-0920-22-01
Formlocher Drehriegel
Produktfamilie
für Mobile Geräte
Größe
20,1 x 22,5 mm
Max. Blechstärke
Stahl 2 mm / Edelstahl 1,5 mm / Aluminium 3 mm
Betätigungsgewinde
ø 9,5 mm

2683-0920-23-01
Formlocher Drehriegel
Produktfamilie
für Mobile Geräte
Größe
20,2 x 23,1 mm
Max. Blechstärke
Stahl 2 mm / Edelstahl 1,5 mm / Aluminium 3 mm
Betätigungsgewinde
ø 9,5 mm

2683-0710-00-00
Betätigungsschraube für Rundlocher
Produktfamilie
für Mobile Geräte
Betätigungsgewinde
Ø 9,5/9,5 mm
Schraubenlänge
72 mm

2684-0711-19-00
Betätigungsschraube für Rundlocher
Produktfamilie
für Mobile Geräte
Betätigungsgewinde
Ø 11,1/19 mm
Schraubenlänge
112 mm


2622-0719-03-00
Distanzhülse
Produktfamilie
für Mobile Geräte
Außendurchmesser
36 mm
Innendurchmesser
19.5 mm
Länge
18 mm

2626-7200-20-00
Scheibe
Produktfamilie
für Mobile Geräte
Außendurchmesser
40 mm
Innendurchmesser
10 mm
Dicke
3 mm

2622-0719-03-00
Distanzhülse
Produktfamilie
für Mobile Geräte
Außendurchmesser
36 mm
Innendurchmesser
19.5 mm
Länge
18 mm

2626-7200-20-00
Scheibe
Produktfamilie
für Mobile Geräte
Außendurchmesser
40 mm
Innendurchmesser
10 mm
Dicke
3 mm

2623-0710-00-00
Betätigungsschraube für Rundlocher
Produktfamilie
für Mobile Geräte
Betätigungsgewinde
Ø 9,5/9,5 mm
Schraubenlänge
100 mm

2683-0719-00-00
Betätigungsschraube für Rundlocher
Produktfamilie
für Mobile Geräte
Betätigungsgewinde
Ø 19/19 mm
Schraubenlänge
135 mm
Montageanleitungen:
Kontakt für Produkte
Finden Sie Ihren persönlichen Ansprechpartner
Wir sind gerne für Sie da
Optimale Schaltschränke und Gehäuse entstehen nicht am Fließband, sondern im Gespräch mit Ihnen. Sind Sie bereit? Dann sprechen Sie am besten gleich mit Ihrem persönlichen häwa Berater.
